hbase-hdfs-cycling-data

This demo will

  • Install the required Stackable operators.

  • Spin up the following data products:

    • Hbase: An open source distributed, scalable, big data store. This demo uses it to store the cyclist dataset and enable access.

    • HDFS: A distributed file system used to intermediately store the dataset before importing it into Hbase

  • Use distcp to copy a cyclist dataset from an S3 bucket into HDFS.

  • Create HFiles, a File format for hbase consisting of sorted key/value pairs. Both keys and values are byte arrays.

  • Load Hfiles into an existing table via the Importtsv utility, which will load data in TSV or CSV format into HBase.

  • Query data via the hbase shell, which is an interactive shell to execute commands on the created table

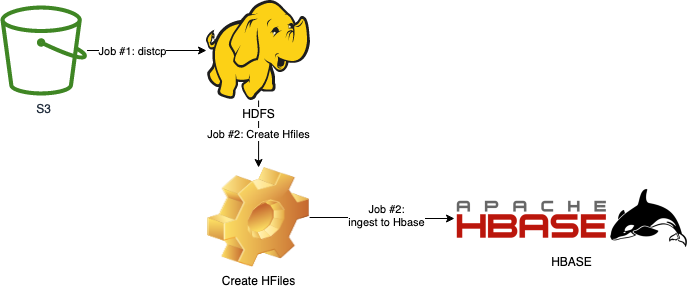

You can see the deployed products and their relationship in the following diagram:

overview

System Requirements

To run this demo, your system needs at least:

  • 3 cpu units (core/hyperthread)

  • 6GiB memory

  • 16GiB disk storage

Listing Deployed Stacklets

To list the installed Stackable services run the following command: stackablectl stacklets list

$ stackablectl stacklets list
PRODUCT    NAME       NAMESPACE  ENDPOINTS                                               EXTRA INFOS

 hbase      hbase      default    regionserver                  172.18.0.5:32282
                                  ui                            http://172.18.0.5:31527
                                  metrics                       172.18.0.5:31081

 hdfs       hdfs       default    datanode-default-0-metrics    172.18.0.2:31441
                                  datanode-default-0-data       172.18.0.2:32432
                                  datanode-default-0-http       http://172.18.0.2:30758
                                  datanode-default-0-ipc        172.18.0.2:32323
                                  journalnode-default-0-metrics 172.18.0.5:31123
                                  journalnode-default-0-http    http://172.18.0.5:30038
                                  journalnode-default-0-https   https://172.18.0.5:31996
                                  journalnode-default-0-rpc     172.18.0.5:30080
                                  namenode-default-0-metrics    172.18.0.2:32753
                                  namenode-default-0-http       http://172.18.0.2:32475
                                  namenode-default-0-rpc        172.18.0.2:31639
                                  namenode-default-1-metrics    172.18.0.4:32202
                                  namenode-default-1-http       http://172.18.0.4:31486
                                  namenode-default-1-rpc        172.18.0.4:31874

 zookeeper  zookeeper  default    zk                            172.18.0.4:32469

When a product instance has not finished starting yet, the service will have no endpoint. Depending on your internet connectivity, creating all the product instances might take considerable time. A warning might be shown if the product is not ready yet.

Adding the First Job

DistCp (distributed copy) is used for large inter/intra-cluster copying. It uses MapReduce to effect its distribution, error handling, recovery, and reporting. It expands a list of files and directories into input to map tasks, each of which will copy a partition of the files specified in the source list. Therefore, the first Job uses DistCp to copy data from a S3 bucket into HDFS. Below, you’ll see parts from the logs.

Copying s3a://public-backup-nyc-tlc/cycling-tripdata/demo-cycling-tripdata.csv.gz to hdfs://hdfs/data/raw/demo-cycling-tripdata.csv.gz
[LocalJobRunner Map Task Executor #0] mapred.RetriableFileCopyCommand (RetriableFileCopyCommand.java:getTempFile(235)) - Creating temp file: hdfs://hdfs/data/raw/.distcp.tmp.attempt_local60745921_0001_m_000000_0.1663687068145
[LocalJobRunner Map Task Executor #0] mapred.RetriableFileCopyCommand (RetriableFileCopyCommand.java:doCopy(127)) - Writing to temporary target file path hdfs://hdfs/data/raw/.distcp.tmp.attempt_local60745921_0001_m_000000_0.1663687068145
[LocalJobRunner Map Task Executor #0] mapred.RetriableFileCopyCommand (RetriableFileCopyCommand.java:doCopy(153)) - Renaming temporary target file path hdfs://hdfs/data/raw/.distcp.tmp.attempt_local60745921_0001_m_000000_0.1663687068145 to hdfs://hdfs/data/raw/demo-cycling-tripdata.csv.gz
[LocalJobRunner Map Task Executor #0] mapred.RetriableFileCopyCommand (RetriableFileCopyCommand.java:doCopy(157)) - Completed writing hdfs://hdfs/data/raw/demo-cycling-tripdata.csv.gz (3342891 bytes)
[LocalJobRunner Map Task Executor #0] mapred.LocalJobRunner (LocalJobRunner.java:statusUpdate(634)) -
[LocalJobRunner Map Task Executor #0] mapred.Task (Task.java:done(1244)) - Task:attempt_local60745921_0001_m_000000_0 is done. And is in the process of committing
[LocalJobRunner Map Task Executor #0] mapred.LocalJobRunner (LocalJobRunner.java:statusUpdate(634)) -
[LocalJobRunner Map Task Executor #0] mapred.Task (Task.java:commit(1421)) - Task attempt_local60745921_0001_m_000000_0 is allowed to commit now
[LocalJobRunner Map Task Executor #0] output.FileOutputCommitter (FileOutputCommitter.java:commitTask(609)) - Saved output of task 'attempt_local60745921_0001_m_000000_0' to file:/tmp/hadoop/mapred/staging/stackable339030898/.staging/_distcp-1760904616/_logs
[LocalJobRunner Map Task Executor #0] mapred.LocalJobRunner (LocalJobRunner.java:statusUpdate(634)) - 100.0% Copying s3a://public-backup-nyc-tlc/cycling-tripdata/demo-cycling-tripdata.csv.gz to hdfs://hdfs/data/raw/demo-cycling-tripdata.csv.gz

Adding the Second Job

The second Job consists of 2 steps.

First, we use org.apache.hadoop.hbase.mapreduce.ImportTsv (see ImportTsv Docs) to create a table and Hfiles. Hfile is an Hbase dedicated file format which is performance optimized for hbase. It stores meta-information about the data and thus increases the performance of hbase. When connecting to the hbase master, opening a hbase shell and executing list, you will see the created table. However, it’ll contain 0 rows at this point. You can connect to the shell via:

kubectl exec -it hbase-master-default-0 -- bin/hbase shell

If you use k9s, you can drill into the hbase-master-default-0 pod and execute bin/hbase shell list.

TABLE
cycling-tripdata

Secondly, we’ll use org.apache.hadoop.hbase.tool.LoadIncrementalHFiles (see bulk load docs) to import the Hfiles into the table and ingest rows. You can now use the hbase shell again and execute count 'cycling-tripdata'. Ssee below for a partial result:

Current count: 1000, row: 02FD41C2518CCF81
Current count: 2000, row: 06022E151BC79CE0
Current count: 3000, row: 090E4E73A888604A
...
Current count: 82000, row: F7A8C86949FD9B1B
Current count: 83000, row: FA9AA8F17E766FD5
Current count: 84000, row: FDBD9EC46964C103
84777 row(s)
Took 13.4666 seconds
=> 84777

Inspecting the Table

You can now use the table and the data. You can use all available hbase shell commands. Below, you’ll see the table description.

describe 'cycling-tripdata'
Table cycling-tripdata is ENABLED
cycling-tripdata
COLUMN FAMILIES DESCRIPTION
{NAME => 'end_lat', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'end_lng', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'end_station_id', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'end_station_name', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'ended_at', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'member_casual', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'rideable_type', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'start_lat', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'start_lng', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'start_station_id', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'start_station_name', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}
{NAME => 'started_at', BLOOMFILTER => 'ROW', IN_MEMORY => 'false', VERSIONS => '1', KEEP_DELETED_CELLS => 'FALSE', DATA_BLOCK_ENCODING => 'NONE', COMPRESSION => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', BLOCKCACHE => 'true', BLOCKSIZE => '65536', REPLICATION_SCOPE => '0'}

Accessing the Hbase Web Interface

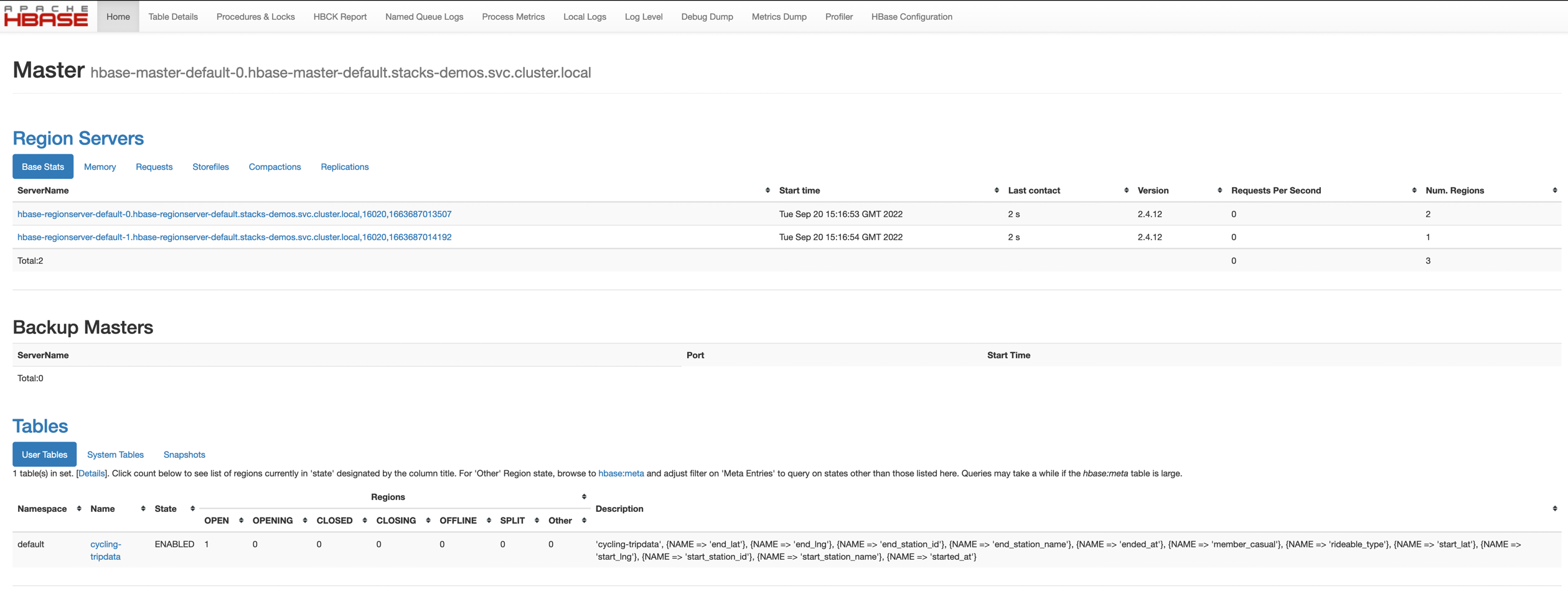

The Hbase web UI will give you information on the status and metrics of your Hbase cluster. If the UI is unavailable please do a port-forward kubectl port-forward hbase-master-default-0 16010. See below for the start page.

hbase ui start page

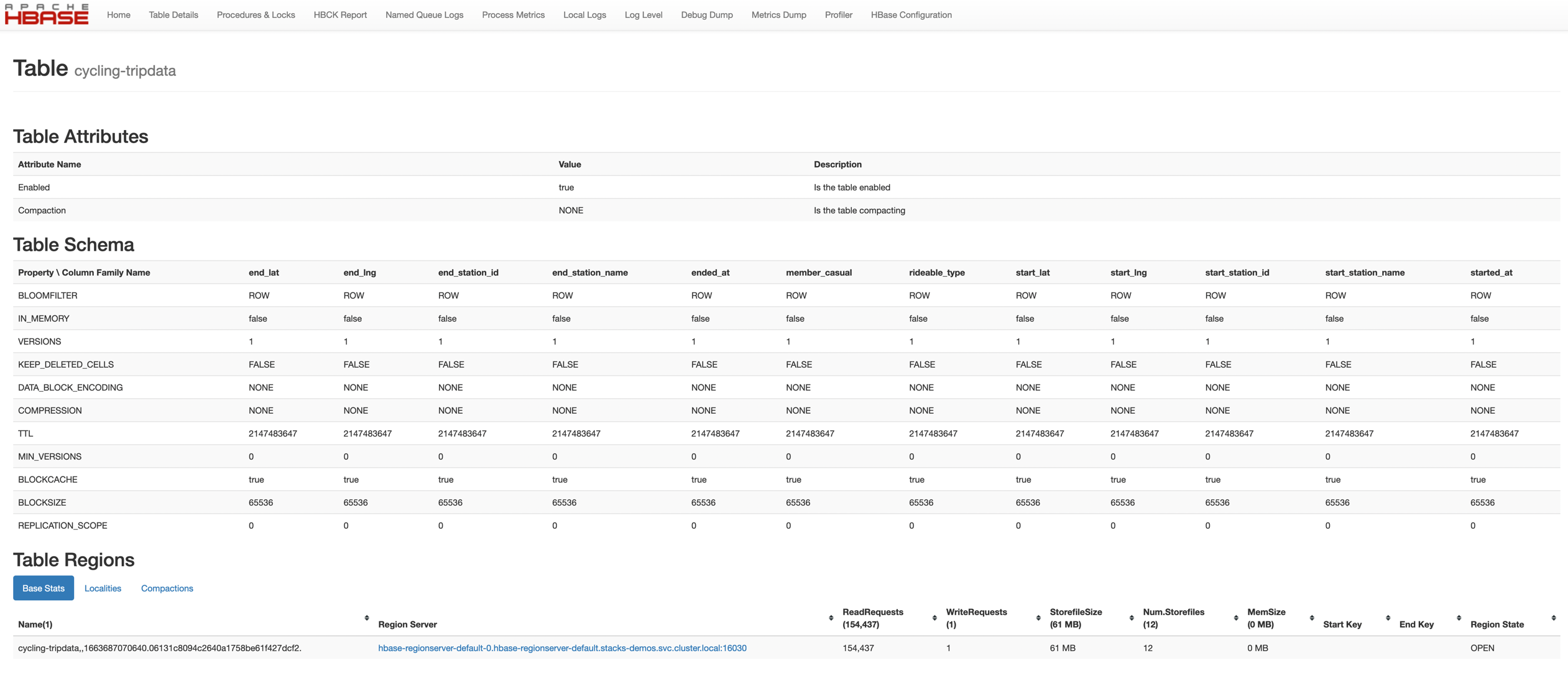

From the start page you can check more details, for example a list of created tables.

hbase table ui

Accessing the HDFS Web Interface

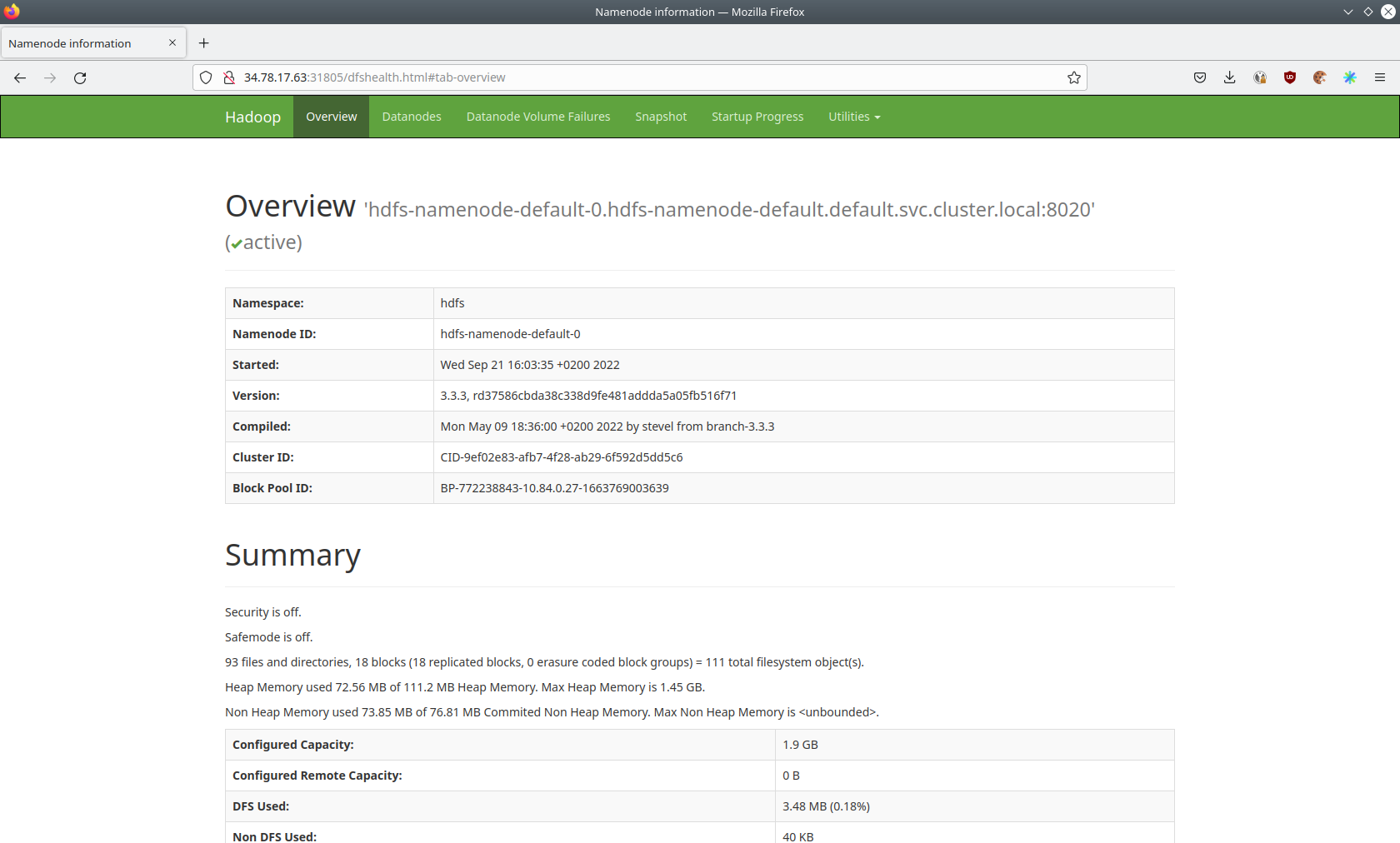

You can also see HDFS details via a UI. Below you will see the overview of your HDFS cluster

hdfs overview

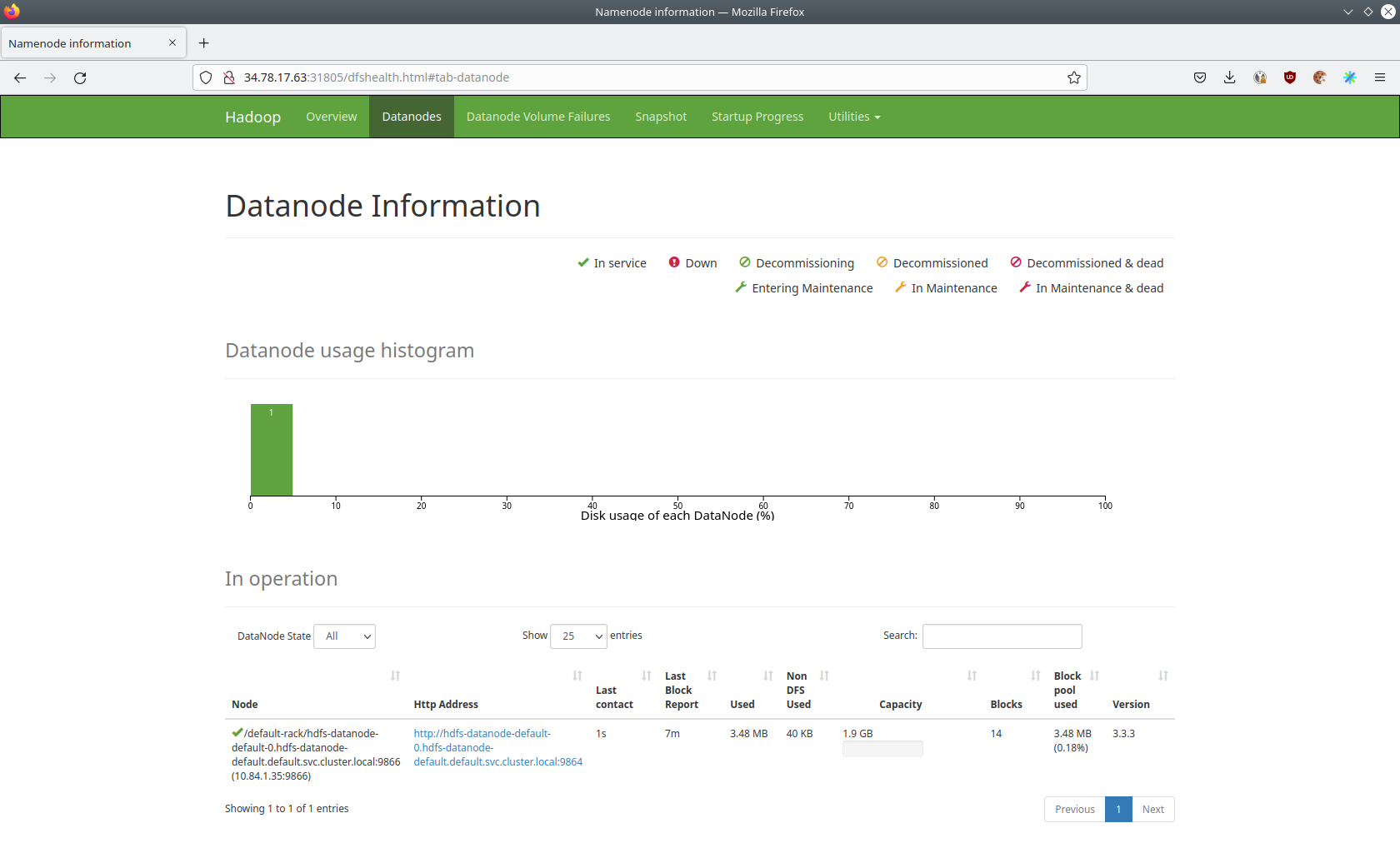

The UI will give you information on the datanodes via the datanodes tab.

hdfs datanode

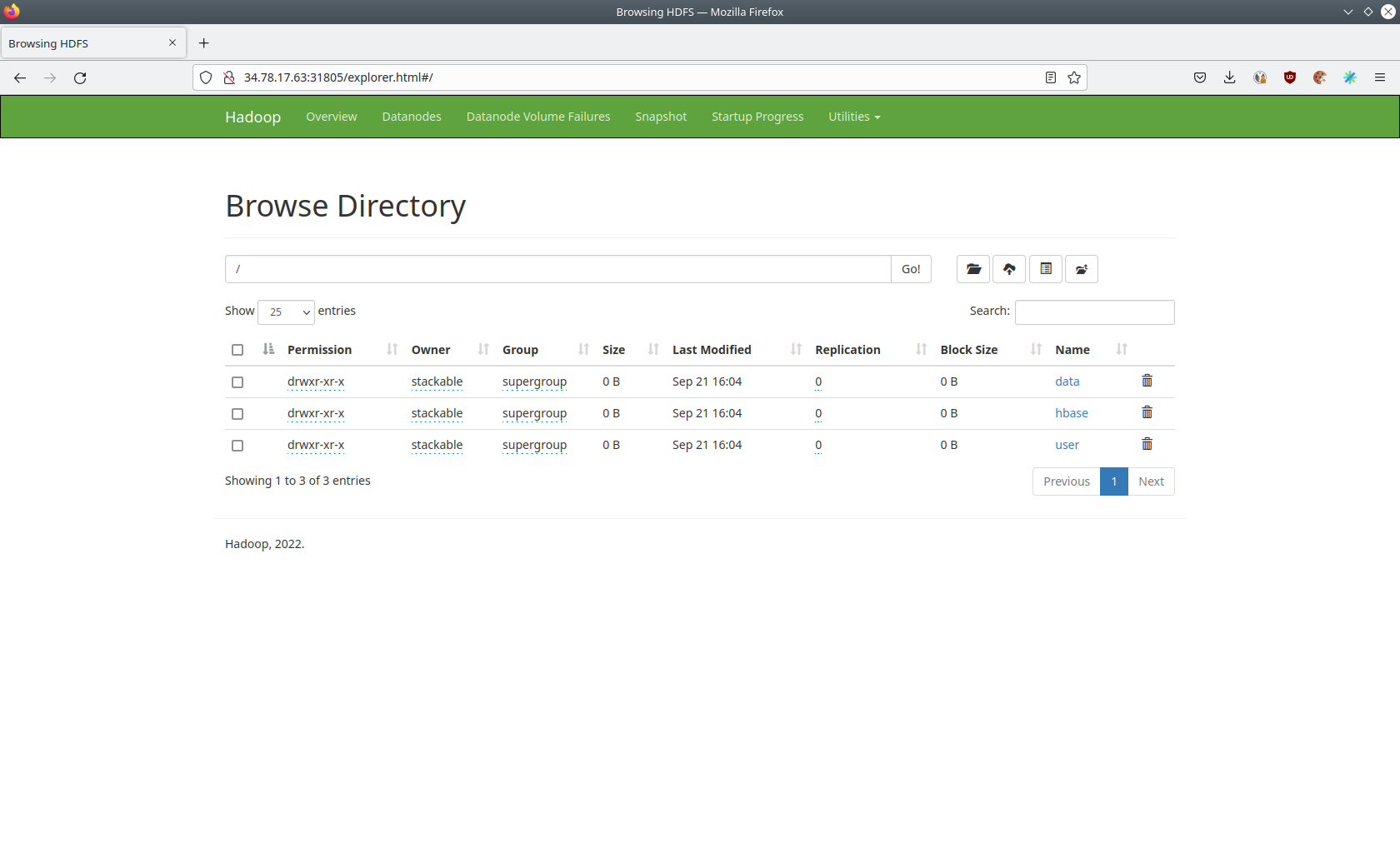

You can also browse the directory with the UI.

hdfs data

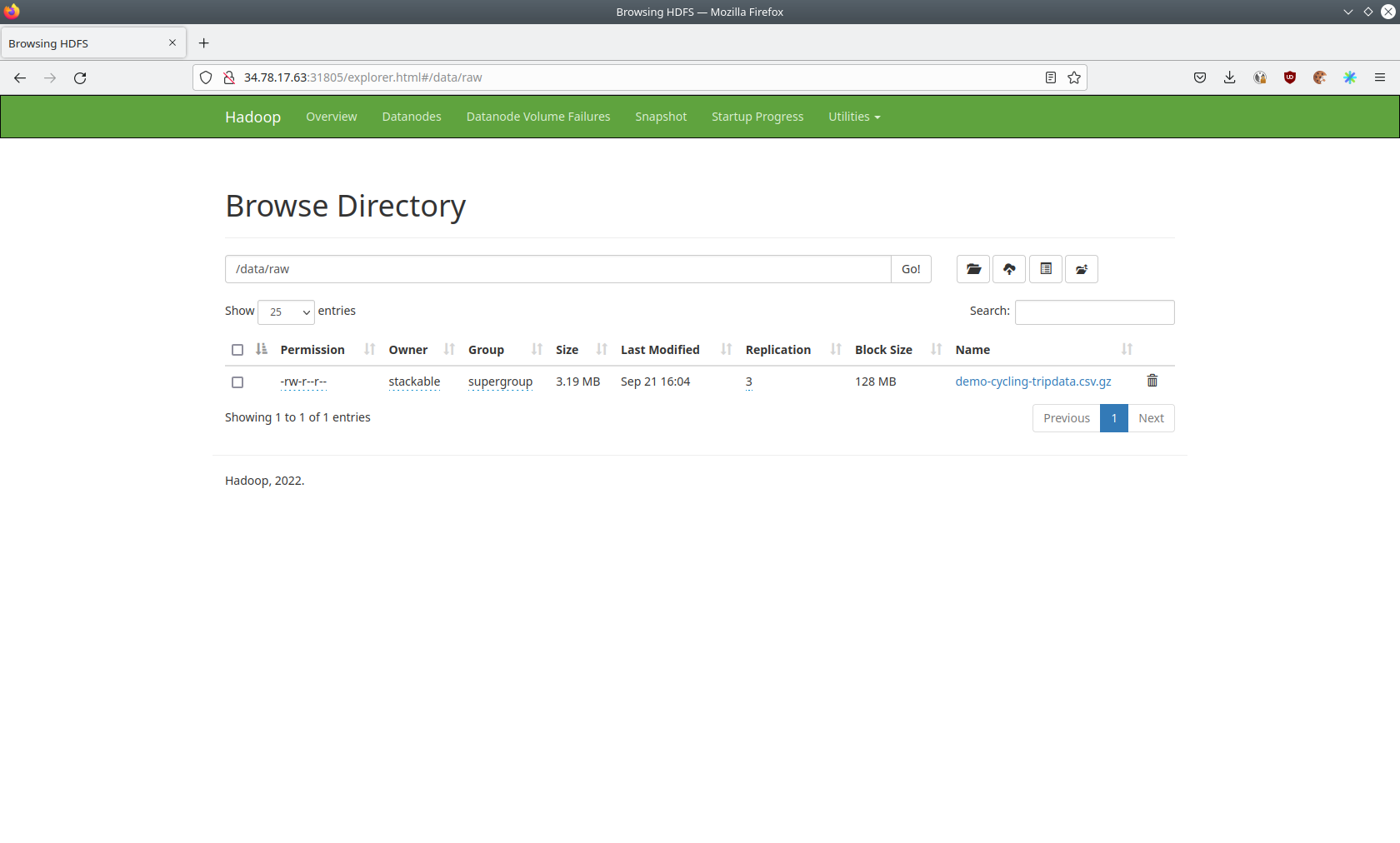

The raw data from the distcp job can be found here.

hdfs data raw

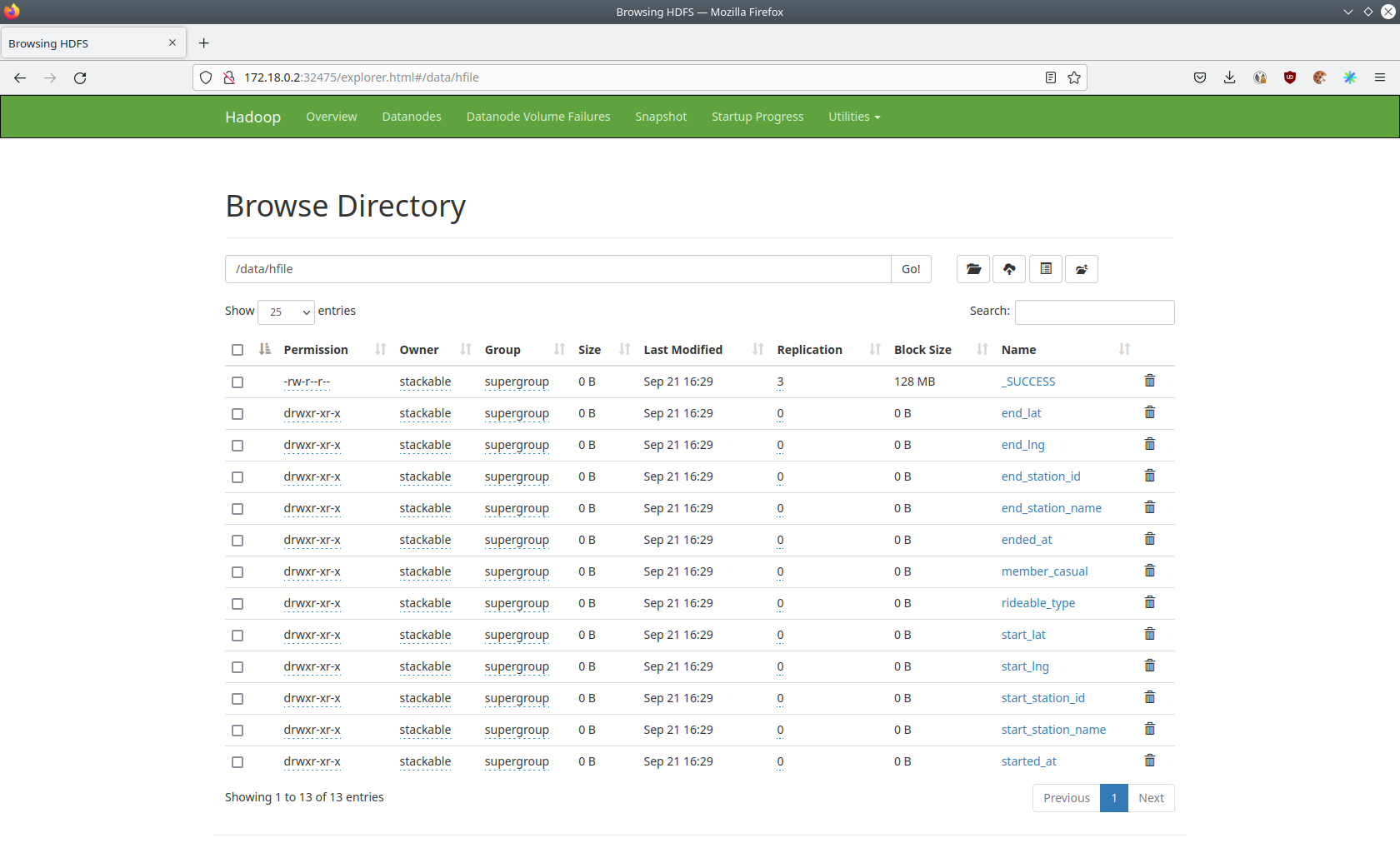

The structure of the Hfiles can be seen here.

hdfs data hfile
